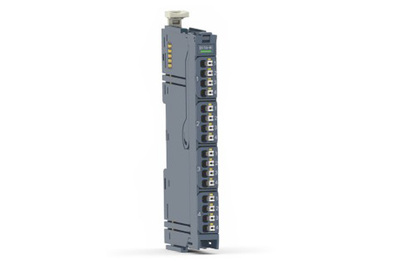

Analog output module

Analog output module

1： Equipped with a 4-point analog differential output module.
2： The input precision is 15 bits plus the sign bit.
3： Each channel can independently select the input type of current and voltage.
4： Isolate from the electrical interface of the backplane bus and from the auxiliary power supply.
5： Configurable diagnostics for each channel.
6： The module width is 12mm, suitable for small space installation.
产品详情

  • 1、 Analog output module model

    型号

    RE80-EAO04-VI

    RE80-EAO04-VI1



    订货号

    01 08 0400

    01 08 0401



    属性

    AO04×16BIT

    AO04×12BIT



    输入点数

    4点

    4点



    精度

    15位+符号

    12位



    连接信号类型

    ●电压

    ●电流

    ●电压

    ●电流



    输入范围

    ●4～20mA

    ●0～20MA

    ●0～10V

    ●±10V

    ●1～5V

    ●0～5V

    ●±5V

    ●DISABLE

    ●4～20mA

    ●0～20MA

    ●0～10V

    ●1～5V

    ●0～5V

    ●DISABLE



    量程选择

    通过软件编程

    通过软件编程



    电气隔离

    ●与CPU隔离

    ●与外部电源隔离

    ●与CPU隔离

    ●与外部电源隔离



    信号超限报警

    有

    有



    信号断线报警

    4～20mA

    4～20mA

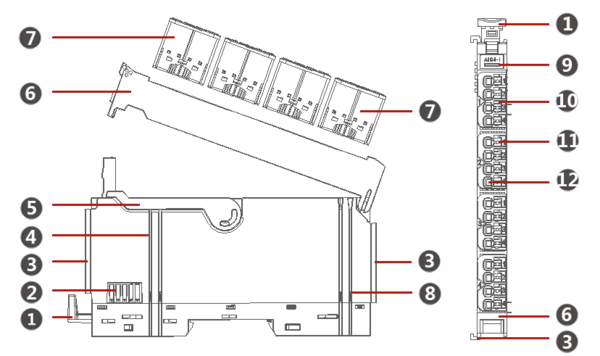

    2、Module composition and description


    1

    Rail stabilizer

    7

    Connecting terminal

    2

    Module communication connector

    8

    Auxiliary power connector AUS

    3

    Module fixed connector

    9

    Module status indicator light

    4

    System power connector

    10

    Channel status indicator light

    5

    Module assisted pull rod

    11

    Pull button

    6

    Terminal fixing bracket

    12

    Wiring hole

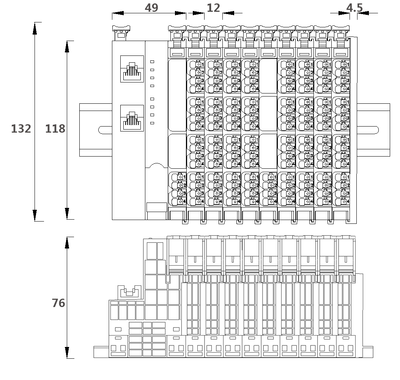

    3、External dimensions
