Product Detail
Digital input module

Digital input module

描述： A digital input module with 16 input points.
1： The high-level signal input is valid (leakage type input) and can be connected to PNP sensors.
2： Low level signal input is valid (source input) and can be connected to NPN sensors.
3： Use a single wire input wiring method.
4： Each channel is equipped with an independent status LED.
5： High density economy type, using external power supply to power the sensor.
6： The module width is 12mm, suitable for small space installation.
产品详情

  • 1、Model of digital input module

    型号

    RE80-EDI16-H

    RE80-EDI16-L

    RE80-EDI08-2WH

    RE80-EDI08-2WL

    订货号

    01 08 0100

    01 08 0101

    01 08 0102

    01 08 0103

    属性

    DI16×DC24V

    DI16×DC24V

    DI08×DC24V

    DI08×DC24V

    输入点数

    16点

    16点

    08点

    08点

    输入属性

    高电平为1

    低电平为1

    高电平为1

    低电平为1

    输入额定电压

    DC24V

    DC24V

    DC24V

    DC24V

    电气隔离

    CPU

    CPU

    CPU

    CPU

    适用范围

    1线高密度输入

    1线高密度输入

    2线输入

    2线输入

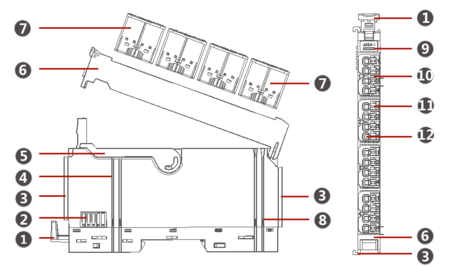

    2、Module composition and description



    1

    Rail stabilizer

    7

    Connecting terminal

    2

    Module communication connector

    8

    Auxiliary power connector

    3

    Module fixed connector

    9

    Module status indicator light

    4

    System power connector

    10

    Channel status indicator light

    5

    Module assisted pull rod

    11

    Pull button

    6

    Terminal fixing bracket

    12

    Wiring hole

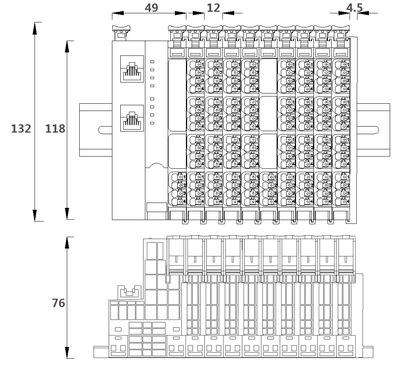

    3、External dimensions
