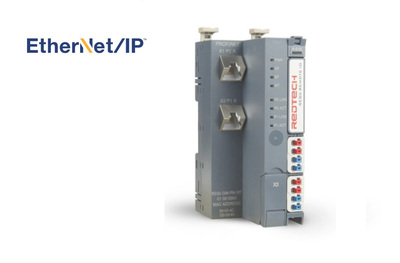

PRODUCT MODEL：RE80 GW-EI
Order No：01 08 0006
1、Product overview
〉Compliant with Ethernet/IP bus protocol standards.
〉Up to 32 expansion modules can be expanded.
〉Equipped with 2 Ethernet interfaces and data exchange function, it can achieve linear network topology.
〉DC 18~36V wide voltage input, rated input power supply is DC24V.
〉Provide auxiliary power to the expansion module through the auxiliary power connector, which can provide power to sensors and actuators.
〉Provide EDS file configuration files, use web pages to configure module parameters and modify IP addresses.

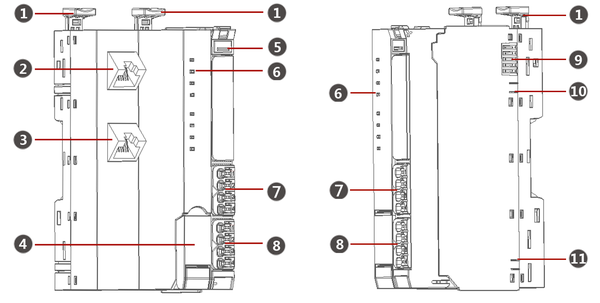

2、Module composition and description
1 | Rail stabilizer | 7 | System power input |
2 | Ethernet/IP P1 connector | 8 | Auxiliary power input |
3 | Ethernet/IP P2 connector | 9 | Extended communication connector |
4 | Service communication interface and IP address reset button | 10 | System power connector |
5 | System power indicator light | 11 | Auxiliary power connector |
6 | System and bus communication status indicator light |
|
|
3、Electrical Block Diagram

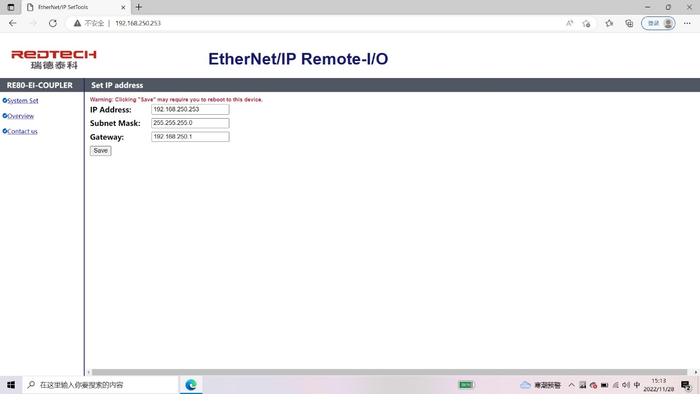

4、IP configuration and reset
