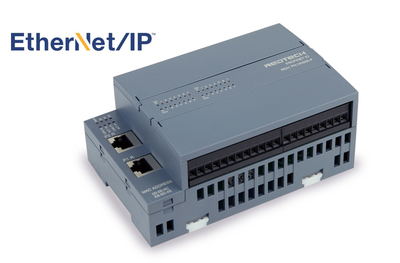

1、Overview of Ethernet/IP Bus Module
>The module communication interface supports Ethernet/IP bus protocol and supports 100M/s Ethernet communication.
>Support configuring IP addresses on the web interface for easy and quick use and maintenance.
>Provide EDS module description file.
>The integrated 2-port switch function facilitates the construction of linear topology structures.
>It can communicate with various devices such as PLCs and computers that support Ethernet/IP master stations.
>Multiple types of analog switch combinations.
>Standard DIN35 rail installation or screw installation.

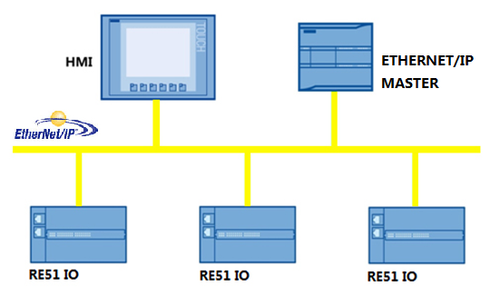

2、Typical applications of the product
3、Ethernet/IP bus module model
model | order No | DESCRIPTION |
RE51 EI 88000-P | 01 02 0600 | DI8×24VDC DO8×PNP |
RE51 EI 88000-R | 01 02 0601 | DI8×24VDC DO8×RLY |
RE51 EI HH000-P | 01 02 0602 | DI16×24VDC DO16×PNP |
RE51 EI HH000-R | 01 02 0603 | DI16×24VDC DO16×RLY |
RE51 EI X8000-P | 01 02 0604 | DI24×24VDC DO8×PNP |
RE51 EI X8000-R | 01 02 0605 | DI24×24VDC DO8×RLY |
RE51 EI D0000-D | 01 02 0606 | DI32×24VDC |
RE51 EI 0D000-P | 01 02 0607 | DO30×PNP |
RE51 EI H8210-P | 01 02 0630 | DI16×24VDC DO8×PNP AI2×12BIT AO1×12BIT |
RE51 EI H8210-R | 01 02 0631 | DI16×24VDC DO8×RLY AI2×12BIT AO1×12BIT |
RE51 EI 88420-P | 01 02 0632 | DI8×24VDC DO8×PNP AI4×12BIT AO2×12BIT |
RE51 EI 88420-R | 01 02 0633 | DI8×24VDC DO8×RLY AI4×12BIT AO2×12BIT |

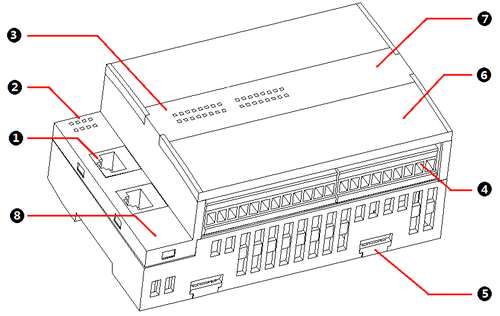

4、Ethernet/IP Bus Module View
①Ethernet/IP bus interface ②Power and communication indicator lights
③IO interface status indicator light ④Power and IO interface terminals
⑤RESET ⑥Module flip cover
⑦Company logo and model ⑧Default IP
⑨Module holder

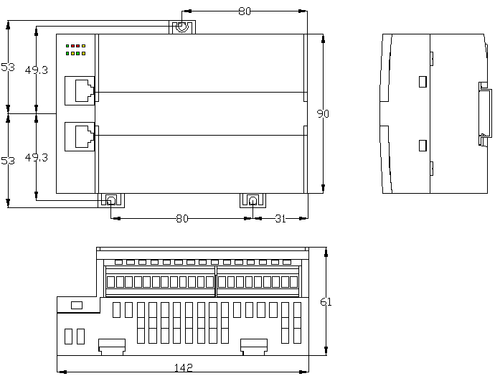

5、Product size
