Product Detail

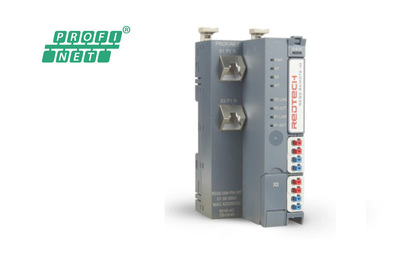

Interface Module(PROFINET)

Interface Module(PROFINET)

1: Compliant with the PROFINET IRT bus protocol standard.
2: Up to 32 expansion modules can be expanded.
3: Equipped with 2 Ethernet interfaces and data exchange function, it can achieve linear network topology.
4: DC 18~36V wide voltage input, rated input power supply is DC24V.
5: Providing auxiliary power to the expansion module through the auxiliary power connector can provide power to sensors and actuators.
6: Fully utilizing the latest technologies such as GSD files and diagnostic information, it effectively supports the most important applications from engineering, configuration to troubleshooting processes.
产品详情
  • PRODUCT MODEL:RE80 GW-PN T

    order No:01 08 0005


    1、product overview

    Compliant with the PROFINET IRT bus protocol standard.

    Up to 32 expansion modules can be expanded.

    Equipped with 2 Ethernet interfaces and data exchange function, it can achieve linear network topology.

    DC 18~36V wide voltage input, rated input power supply is DC24V.

    Provide auxiliary power to the expansion module through the auxiliary power connector, which can provide power to sensors and actuators.

    〉Fully utilizing the latest technologies such as GSD files and diagnostic information, it effectively supports the most important applications from engineering, configuration to troubleshooting processes.

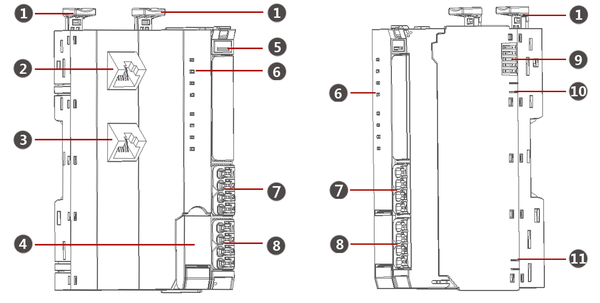

    2、Module composition and description



    1

    Rail stabilizer

    7

    System power input

    2

    PROFNIET P1 connector

    8

    Auxiliary power input

    3

    PROFNIET P2 connector

    9

    Extended communication connector

    4

    Service communication interface

    10

    System power connector

    5

    System power indicator light

    11

    Auxiliary power connector

    6

    System and bus communication status indicator light

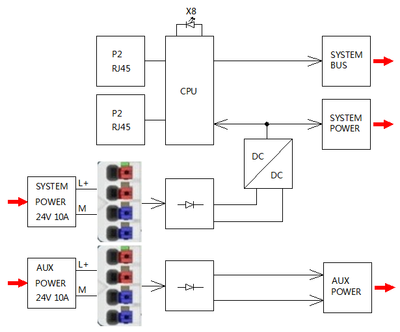

    3、Electrical Block Diagram


    4、technical data

    总线参数


    总线协议

    PROFINET RT/IRT

    总线连接

    RJ45×2

    传输速率

    100MBaud

    传输速率

    100MBaud

    输入过程映像

    最大512字节

    输出过程映像

    最大512字节

    最大IO点数

    约512个

    最大总线段长

    100m

    电气参数

    可配置模块数量

    32

    参数配置

    软件配置

    系统电源电压

    DC24V(-25%...+30%)

    辅助电源电压

    DC24V(-25%...+30%)

    系统电源最大电流

    10A

    辅助电源最大电流

    10A

    模块消耗电流

    106mA(DC24V)



    综合参数

    工作温度

    -10℃…+60℃

    相对湿度

    95%不结露

    接线方式

    0.14mm²…1.5mm²,剥线长度10mm²

    抗振动

    符合IEC 60068-2-6标准



    抗冲击

    符合IEC 60068-2-27标准

    尺寸(宽/高/深)

    49/132/76

    防护等级

    IP20

    重量

    176g

    EMC-抗干扰性

    符合EN 50082-2标准

    存储温度

    -25℃…+85℃

    EMC-辐射干扰

    符合EN 50081-2标准

    附件




    终端模块

    自带
