Four communication modes: "send receive send receive" mode, "receive send receive" mode, "send send" mode, and "receive receive" mode.
3：
Users can achieve transparent transmission of communication messages between the PROFIBUS master station and devices through the PROFIBUS communication data area.
Users do not need to understand the technical details of PROFIBUS. They only need to refer to this manual and the provided application examples, complete the configuration according to requirements, and can connect and communicate with serial communication devices in a short period of time without complex programming.
Four communication modes: "send receive send receive" mode, "receive send receive" mode, "send send" mode, and "receive receive" mode.
Users can achieve transparent transmission of communication messages between the PROFIBUS master station and devices through the PROFIBUS communication data area.
Aluminum alloy shell, IP20 protection level.
Standard 35mm rail installation.

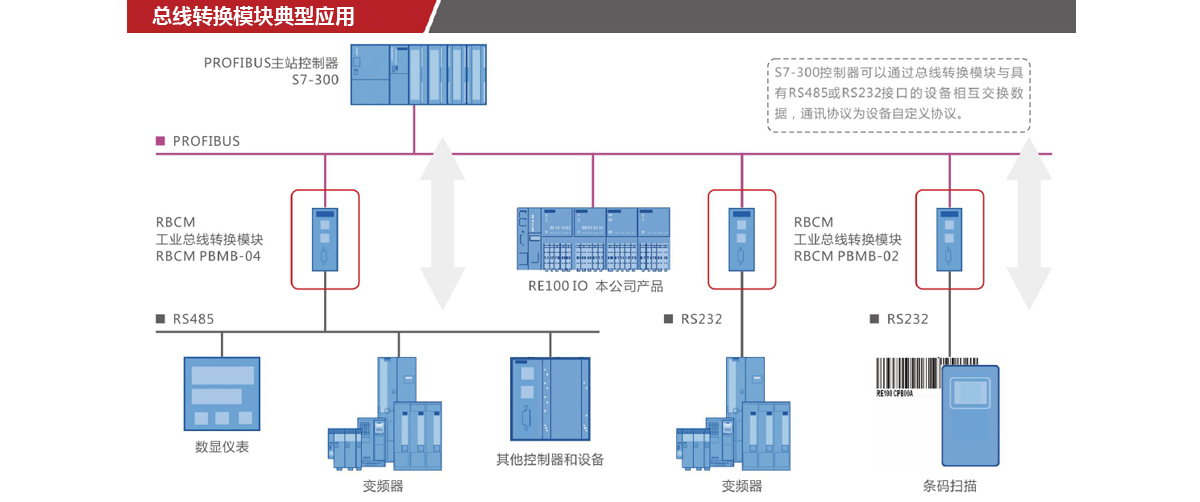

Any field device with RS232/485 interface and user access to interface communication protocol can use this product to achieve interconnection between the field device and PROFIBUS master station. For example, scanners, non-standard protocol devices, and so on.
