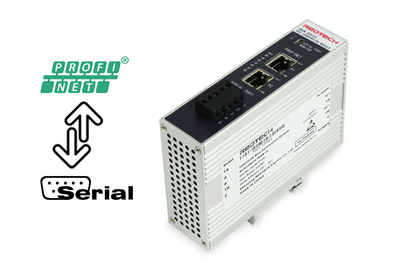

PORPINET to Custom Protocol Module

1：	用户不用了解PROFINET技术细节，用户只需参考本手册及提供的应用实例，根据要求完成配置，不需要复杂编程，即可在短时间内实现与串口通信设备连接通信。
2：	Four communication modes: "send receive send receive" mode, "receive send receive" mode, "send send" mode, and "receive receive" mode.
3：	Users can achieve transparent transmission of communication messages between the PROFINET master station and devices through the PROFINET communication data area.
4：	Aluminum alloy shell, IP20 protection level.
5：	Standard 35mm rail installation.
6：	凡具有RS232/485 接口、用户能够得到接口通信协议的现场设备，都可以使用本产品实现现场设备与PROFINET主站的互连。如：扫描枪、非标准协议设备等等。

产品详情

Users do not need to understand the technical details of PROFINET. They only need to refer to this manual and the provided application examples, complete the configuration according to requirements, and can connect and communicate with serial communication devices in a short period of time without complex programming.
Four communication modes: "send receive send receive" mode, "receive send receive" mode, "send send" mode, and "receive receive" mode.
Users can achieve transparent transmission of communication messages between the PROFINET master station and devices through the PROFINET communication data area.
Aluminum alloy shell, IP20 protection level.
Standard 35mm rail installation.

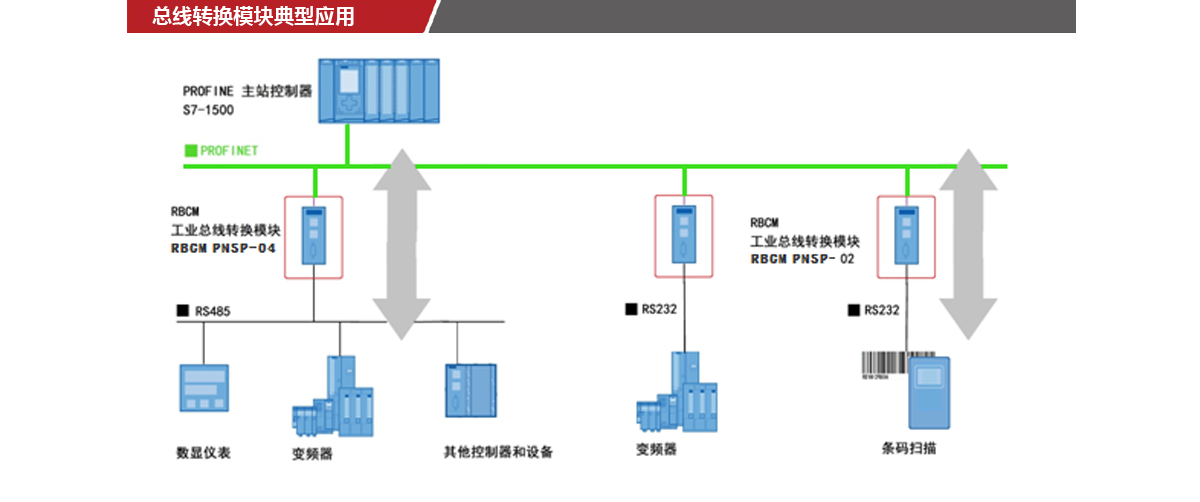

Any field device with RS232/485 interface and user access to interface communication protocol can use this product to achieve interconnection between the field device and PROFINET master station. For example, scanners, non-standard protocol devices, and so on.
