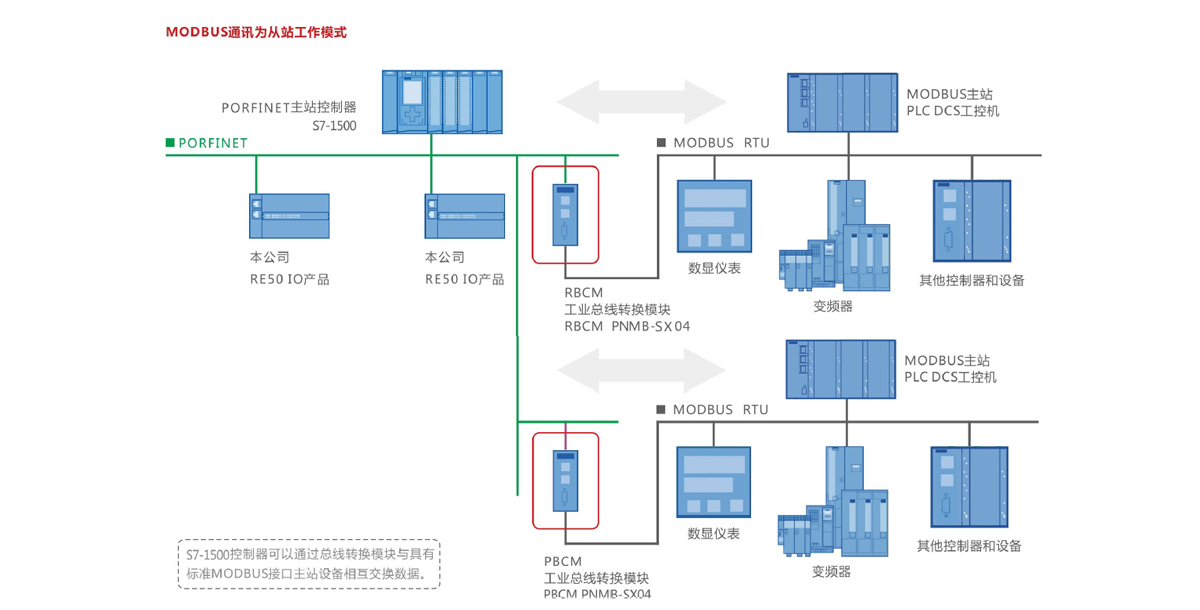

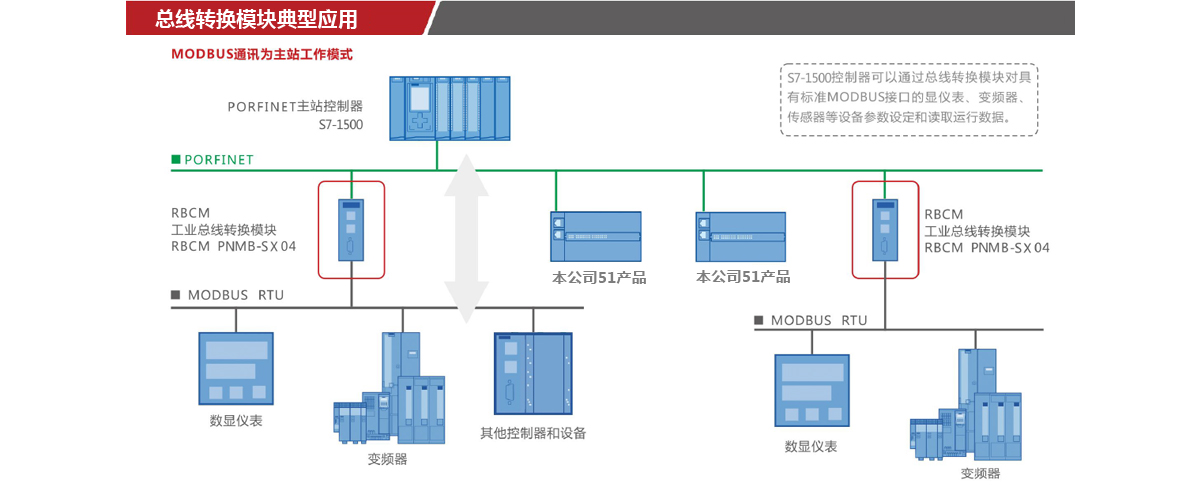

A model has both MODBUS master mode and MODBUS slave mode, which can be adapted to different situations. It only requires the use of different GSD files to achieve the conversion of working modes.
3：
MODBUS interfaces all have 1500V electrical isolation.
Users do not need to understand the technical details of PROFIBUS and MODBUS. They only need to refer to this manual and the provided application examples, complete the configuration according to requirements, and can achieve connection communication in a short time without complex programming. Equipped with a Modbus communication diagnostic interface, the Modbus interface can be monitored for data transmission and reception using serial port debugging software.
A model has both MODBUS master mode and MODBUS slave mode, which can be adapted to different situations. It only requires the use of different GSD files to achieve the conversion of working modes.
MODBUS interfaces all have 1500V electrical isolation.
Aluminum alloy shell, IP20 protection level.
Standard 35mm rail installation.
All products with MODBUS RTU standard communication protocol, including frequency converters, motor start protectors, air compressors, temperature controllers, power inspection instruments, and various field instruments, can be converted to PROFBUS protocol for communication with PLCs.
