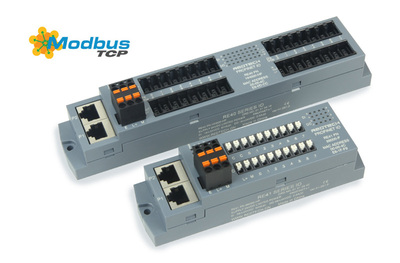

RE40 series Remote IO （ModbusTCP）

RE40 series Remote IO （ModbusTCP）

1： The module communication interface supports MODBUSTCP bus protocol and 100M/s Ethernet communication.
2： Support configuring IP addresses on the web interface for easy and quick use and maintenance.
3： The integrated 2-port switch facilitates the construction of linear topology structures.
4： Can communicate with various PLCs, computers, and other devices that support MODBUSTCP master station.
5： Multiple 16 point or 32 point switch combination models. There are two types of wiring options available: econ and spring terminal.
6： Screw installation or rail installation (provide accessories for rail installation).
产品详情

  • 1、Product overview

    〉The module communication interface supports MODBUSTCP bus protocol and 100M/s Ethernet communication.

    〉Support configuring IP addresses on the web interface for easy and quick use and maintenance.

    〉The integrated 2-port switch facilitates the construction of linear topology structures.

    〉Can communicate with various PLCs, computers, and other devices that support MODBUSTCP master station.

    〉Multiple 16 point or 32 point switch combination models. There are two types of wiring options available: econ and spring terminal.

    〉Screw installation or rail installation (provide accessories for rail installation.

    2、Typical applications




    3、MODBUSTCP bus module model

    型号

    订货号

    产品描述

    RE40 MT 88000-HP

    01 01 0300

    MODBUSTCP 8点高电平输入   8点PNP晶体管输出   e-CON接线

    RE40 MT 88000-LP

    01 01 0301

    MODBUSTCP 8点低电平输入   8点PNP晶体管输出   e-CON接线

    RE40 MT 88000-HN

    01 01 0303

    MODBUSTCP 8点高电平输入   8点NPN晶体管输出   e-CON接线

    RE40 MT 88000-LN

    01 01 0304

    MODBUSTCP 8点低电平输入   8点NPN晶体管输出   e-CON接线

    RE40 MT H0000-H

    01 01 0305

    MODBUSTCP 16点高电平输入   e-CON接线

    RE40 MT H0000-L

    01 01 0306

    MODBUSTCP 16点低电平输入   e-CON接线

    RE40 MT 0H000-P

    01 01 0307

    MODBUSTCP 16点PNP晶体管输出   e-CON接线

    RE40 MT 0H000-N

    01 01 0308

    MODBUSTCP 16点NPN晶体管输出   e-CON接线

    RE40 MT HH000-HP

    01 01 0310

    MODBUSTCP 16点高电平输入   16点PNP晶体管输出   e-CON接线

    RE40 MT HH000-LP

    01 01 0311

    MODBUSTCP 16点低电平输入   16点PNP晶体管输出   e-CON接线

    RE40 MT HH000-HN

    01 01 0312

    MODBUSTCP 16点高电平输入   16点NPN晶体管输出   e-CON接线

    RE40 MT HH000-LN

    01 01 0313

    MODBUSTCP 16点低电平输入   16点NPN晶体管输出   e-CON接线

    RE40 MT X8000-HP

    01 01 0314

    MODBUSTCP 24点高电平输入   8点PNP晶体管输出   e-CON接线

    RE40 MT X8000-LP

    01 01 0315

    MODBUSTCP 24点低电平输入   8点PNP晶体管输出   e-CON接线

    RE40 MT X8000-HN

    01 01 0316

    MODBUSTCP 24点高电平输入   8点NPN晶体管输出   e-CON接线

    RE40 MT X8000-LN

    01 01 0317

    MODBUSTCP 24点低电平输入   8点NPN晶体管输出   e-CON接线

    RE40 MT D0000-H

    01 01 0318

    MODBUSTCP 32点高电平输入   e-CON接线

    RE40 MT D0000-L

    01 01 0319

    MODBUSTCP 32点低电平输入   e-CON接线

    RE40 MT 0D000-P

    01 01 0320

    MODBUSTCP 32点PNP晶体管输出   e-CON接线

    RE40 MT 0D000-N

    01 01 0321

    MODBUSTCP 32点NPN晶体管输出   e-CON接线

    RE41 MT 88000-P

    01 01 0330

    MODBUSTCP 8点输入 8点PNP晶体管输出 弹片端子接线

    RE41 MT 88000-N

    01 01 0331

    MODBUSTCP 8点输入 8点NPN晶体管输出 弹片端子接线

    RE41 MT H0000-D

    01 01 0332

    MODBUSTCP 16点输入   弹片端子接线

    RE41 MT 0H000-P

    01 01 0333

    MODBUSTCP 16点PNP晶体管输出   弹片端子接线

    RE41 MT 0H000-N

    01 01 0334

    MODBUSTCP 16点NPN晶体管输出   弹片端子接线

    RE41 MT HH000-P

    01 01 0340

    MODBUSTCP 16点输入   16点PNP晶体管输出   弹片端子接线

    RE41 MT HH000-N

    01 01 0341

    MODBUSTCP 16点输入   16点NPN晶体管输出   弹片端子接线

    RE41 MT X8000-P

    01 01 0342

    MODBUSTCP 24点输入   8点PNP晶体管输出   弹片端子接线

    RE41 MT X8000-N

    01 01 0343

    MODBUSTCP 24点输入   8点NPN晶体管输出   弹片端子接线

    RE41 MT D0000-D

    01 01 0344

    MODBUSTCP 32点输入   弹片端子接线

    RE41 MT 0D000-P

    01 01 0345

    MODBUSTCP 32点PNP晶体管输出   弹片端子接线

    RE41 MT 0D000-N

    01 01 0346

    MODBUSTCP 32点NPN晶体管输出   弹片端子接线

    RE40 PN 88000-HP

    01 01 0500

    PROFINET 8点高电平输入   8点PNP晶体管输出   e-CON接线

    4、MODBUSTCP bus module view



    ①Module fixing hole                                            ②MODBUSTCP bus interface

    ③Power and communication indicator lights      ④Switching connector

    ⑤IO interface status indicator light                     ⑥Power supply connector

    ⑦Switching connector

    5、Size

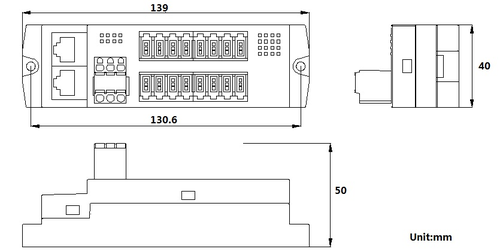

    〉Dimensional diagram of 16 point digital quantity model for RE40 bus IO module.

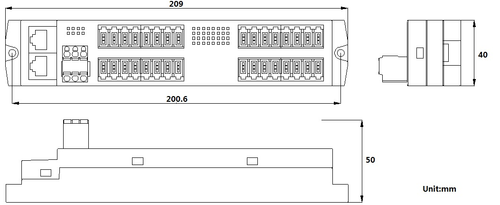

    〉Size diagram of the 32 point digital model for the RE40 bus IO module.



  • 4.png

    〉The size of the RE40 bus IO module is the same as the external dimensions of RE41.
