RE40 series Remote IO （Ethernet/IP）

RE40 series Remote IO （Ethernet/IP）

1： The module communication interface supports Ethernet/IP bus protocol and supports 100M/s Ethernet communication.
2： Support configuring IP addresses on the web interface for easy and quick use and maintenance.
3： Provide EDS module description file.
4： The integrated 2-port cargo aircraft facilitates the construction of linear topology structures.
5： It can communicate with various devices such as PLCs and computers that support Ethernet/IP master stations.
6： Multiple 16 point or 32 point switch combination models. There are two types of wiring options available: econ and spring terminal.
产品详情

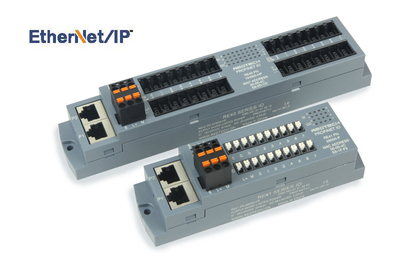

  • 1、Product overview

    〉The module communication interface supports Ethernet/IP bus protocol and supports 100M/s Ethernet communication.

    〉Support configuring IP addresses on the web interface for easy and quick use and maintenance.

    〉Provide EDS module description file.

    〉The integrated 2-pair cargo aircraft facilitates the construction of linear topology structures.

    〉It can communicate with various devices such as PLCs and computers that support Ethernet/IP master stations.

    〉Multiple 16 point or 32 point switch combination models. There are two types of wiring options available: econ and spring terminal.

    〉Screw installation or rail installation (provide accessories for rail installation).

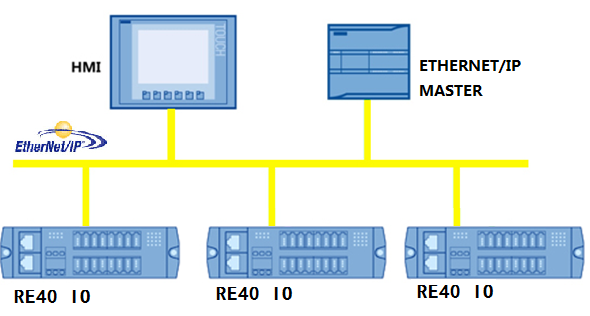

    2、Typical applications



  • 1.png


  • 3、Ethernet/IP bus module model

    型号

    订货号

    产品描述

    RE40 EI 88000-HP

    01 01 0600

    Ethernet/IP 8点高电平输入   8点PNP晶体管输出   e-CON接线

    RE40 EI 88000-LP

    01 01 0601

    Ethernet/IP 8点低电平输入   8点PNP晶体管输出   e-CON接线

    RE40 EI 88000-HN

    01 01 0603

    Ethernet/IP 8点高电平输入   8点NPN晶体管输出   e-CON接线

    RE40 EI 88000-LN

    01 01 0604

    Ethernet/IP 8点低电平输入   8点NPN晶体管输出   e-CON接线

    RE40 EI H0000-H

    01 01 0605

    Ethernet/IP 16点高电平输入   e-CON接线

    RE40 EI H0000-L

    01 01 0606

    Ethernet/IP 16点低电平输入   e-CON接线

    RE40 EI 0H000-P

    01 01 0607

    Ethernet/IP 16点PNP晶体管输出   e-CON接线

    RE40 EI 0H000-N

    01 01 0608

    Ethernet/IP 16点NPN晶体管输出   e-CON接线

    RE40 EI HH000-HP

    01 01 0610

    Ethernet/IP 16点高电平输入   16点PNP晶体管输出   e-CON接线

    RE40 EI HH000-LP

    01 01 0611

    Ethernet/IP 16点低电平输入   16点PNP晶体管输出   e-CON接线

    RE40 EI HH000-HN

    01 01 0612

    Ethernet/IP 16点高电平输入   16点NPN晶体管输出   e-CON接线

    RE40 EI HH000-LN

    01 01 0613

    Ethernet/IP 16点低电平输入   16点NPN晶体管输出   e-CON接线

    RE40 EI X8000-HP

    01 01 0614

    Ethernet/IP 24点高电平输入   8点PNP晶体管输出   e-CON接线

    RE40 EI X8000-LP

    01 01 0615

    Ethernet/IP 24点低电平输入   8点PNP晶体管输出   e-CON接线

    RE40 EI X8000-HN

    01 01 0616

    Ethernet/IP 24点高电平输入   8点NPN晶体管输出   e-CON接线

    RE40 EI X8000-LN

    01 01 0617

    Ethernet/IP 24点低电平输入   8点NPN晶体管输出   e-CON接线

    RE40 EI D0000-H

    01 01 0618

    Ethernet/IP 32点高电平输入   e-CON接线

    RE40 EI D0000-L

    01 01 0619

    Ethernet/IP 32点低电平输入   e-CON接线

    RE40 EI 0D000-P

    01 01 0620

    Ethernet/IP 32点PNP晶体管输出   e-CON接线

    RE40 EI 0D000-N

    01 01 0621

    Ethernet/IP 32点NPN晶体管输出   e-CON接线

    RE41 EI 88000-P

    01 01 0630

    Ethernet/IP 8点输入 8点PNP晶体管输出 弹片端子接线

    RE41 EI 88000-N

    01 01 0631

    Ethernet/IP 8点输入 8点NPN晶体管输出 弹片端子接线

    RE41 EI H0000-D

    01 01 0632

    Ethernet/IP 16点输入   弹片端子接线

    RE41 EI 0H000-P

    01 01 0633

    Ethernet/IP 16点PNP晶体管输出   弹片端子接线

    RE41 EI 0H000-N

    01 01 0634

    Ethernet/IP 16点NPN晶体管输出   弹片端子接线

    RE41 EI HH000-P

    01 01 0640

    Ethernet/IP 16点输入   16点PNP晶体管输出   弹片端子接线

    RE41 EI HH000-N

    01 01 0641

    Ethernet/IP 16点输入   16点NPN晶体管输出   弹片端子接线

    RE41 EI X8000-P

    01 01 0642

    Ethernet/IP 24点输入   8点PNP晶体管输出   弹片端子接线

    RE41 EI X8000-N

    01 01 0643

    Ethernet/IP 24点输入   8点NPN晶体管输出   弹片端子接线

    RE41 EI D0000-D

    01 01 0644

    Ethernet/IP 32点输入   弹片端子接线

    RE41 EI 0D000-P

    01 01 0645

    Ethernet/IP 32点PNP晶体管输出   弹片端子接线

    RE41 EI 0D000-N

    01 01 0646

    Ethernet/IP 32点NPN晶体管输出   弹片端子接线

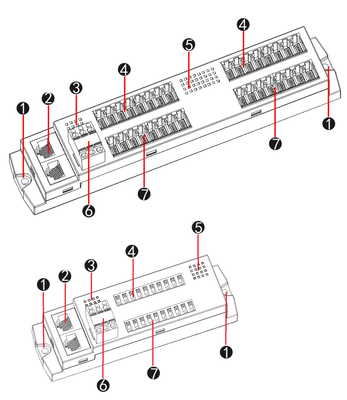

    4、Ethernet/IP Bus Module View


    ①Module fixing hole                                            ②Ethernet/IP bus interface

    ③Power and communication indicator lights      ④Switching connector

    ⑤IO interface status indicator light                     ⑥Power supply connector

    ⑦Switching connector

    5、Size

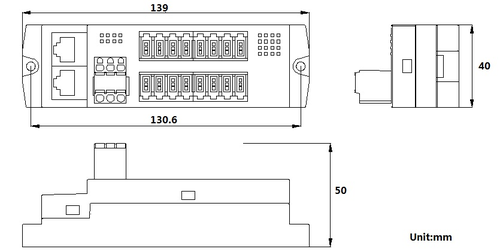

    〉Dimensional diagram of 16 point digital quantity model for RE40 bus IO module.



  • 3.png

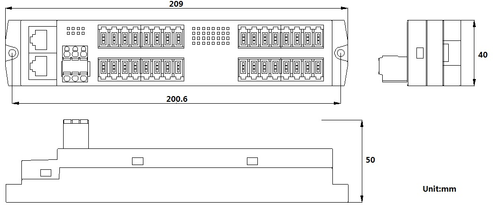

  • 〉Size diagram of the 32 point digital model for the RE40 bus IO module.



  • 4.png

    〉The size of the RE40 bus IO module is the same as the external dimensions of RE41.
