1、Overview of MODBUSTCP bus module
〉The module communication interface supports MODBUSTCP bus protocol and 100M/s Ethernet communication.
〉Support web interface configuration parameters and monitoring module status for easy and quick use and maintenance.
〉The integrated 2-port switch function facilitates the construction of linear topology structures.
〉Can communicate with various PLCs, computers, and other devices that support MODBUSTCP master station.
〉Multiple types of analog switch combinations.
〉Standard DIN35 rail installation or screw installation.

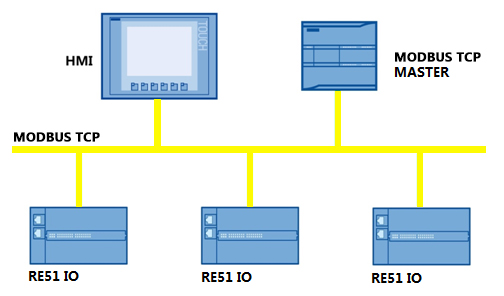

2、Typical applications of the product
3、MODBUSTCP bus module model
型号 | 订货号 | 产品描述 |
RE51 MT 88000-P | 01 02 0300 | DI8×24VDC DO8×PNP |
RE51 MT 88000-R | 01 02 0301 | DI8×24VDC DO8×RLY |
RE51 MT HH000-P | 01 02 0302 | DI16×24VDC DO16×PNP |
RE51 MT HH000-R | 01 02 0303 | DI16×24VDC DO16×RLY |
RE51 MT X8000-P | 01 02 0304 | DI24×24VDC DO8×PNP |
RE51 MT X8000-R | 01 02 0305 | DI24×24VDC DO8×RLY |
RE51 MT D0000-D | 01 02 0306 | DI32×24VDC |
RE51 MT 0D000-P | 01 02 0307 | DO30×PNP |
RE51 MT H8210-P | 01 02 0330 | DI16×24VDC DO8×PNP AI2×12BIT AO1×12BIT |
RE51 MT H8210-R | 01 02 0331 | DI16×24VDC DO8×RLY AI2×12BIT AO1×12BIT |
RE51 MT 88420-P | 01 02 0332 | DI8×24VDC DO8×PNP AI4×12BIT AO2×12BIT |
RE51 MT 88420-R | 01 02 0333 | DI8×24VDC DO8×RLY AI4×12BIT AO2×12BIT |

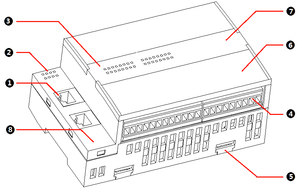

4、MODBUSTCP bus module view
①MODBUSTCP bus interface ②Power and communication indicator lights
③IO interface status indicator light ④Power and IO interface terminals
⑤RESET ⑥Module flip cover
⑦Company logo and model ⑧Default IP
⑨Module holder

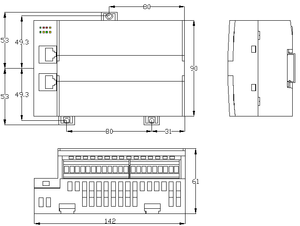

5、Product size
