1、Overview of PROFIBUS bus module
〉Supports PROFIBUS DP V0 bus protocol and complies with IEC61158 standard.
〉It can be configured using PROFIBUS configuration software such as STEP7 or Botu.
〉Provide the required GSD files.
〉Multiple types of analog switch combinations.
〉Standard DIN35 rail installation or screw installation.

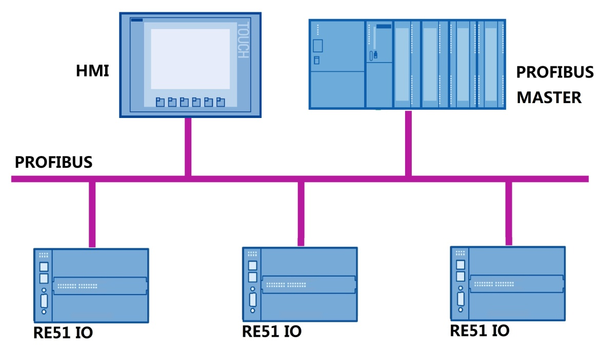

2、Typical applications of the product
3、PROFIBUS bus module model
型号 | 订货号 | 产品描述 |
RE51 PB 88000-P | 01 02 0000 | DI8×24VDC DO8×PNP |
RE51 PB 88000-R | 01 02 0001 | DI8×24VDC DO8×RLY |
RE51 PB HH000-P | 01 02 0002 | DI16×24VDC DO16×PNP |
RE51 PB HH000-R | 01 02 0003 | DI16×24VDC DO16×RLY |
RE51 PB X8000-P | 01 02 0004 | DI24×24VDC DO8×PNP |
RE51 PB X8000-R | 01 02 0005 | DI24×24VDC DO8×RLY |
RE51 PB D0000-D | 01 02 0006 | DI32×24VDC |
RE51 PB 0D000-P | 01 02 0007 | DO30×PNP |
RE51 PB H8210-P | 01 02 0030 | DI16×24VDC DO8×PNP AI2×12BIT AO1×12BIT |
RE51 PB H8210-R | 01 02 0031 | DI16×24VDC DO8×RLY AI2×12BIT AO1×12BIT |
RE51 PB 88420-P | 01 02 0032 | DI8×24VDC DO8×PNP AI4×12BIT AO2×12BIT |
RE51 PB 88420-R | 01 02 0033 | DI8×24VDC DO8×RLY AI4×12BIT AO2×12BIT |

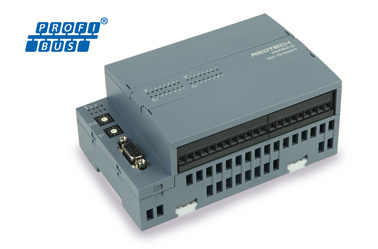

4、PROFIBUS bus module view
①PROFIBUS address coding switch ②Power and communication indicator lights
③IO interface status indicator light ④Power and IO interface terminals
⑤Module holder ⑥Module flip cover
⑦Company logo and model ⑧PROFIBUS bus interface

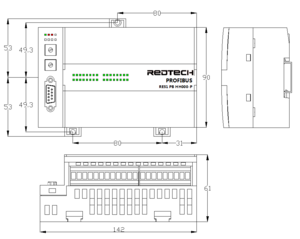

5、Product size
