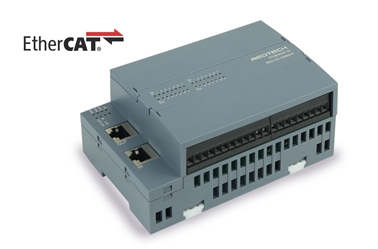

RE51 series Remote IO (ETHERCAT)

RE51 series Remote IO (ETHERCAT)

1: Supports EtherCAT bus protocol and complies with IEC61158 and GB/T25105 standards.
2: The integrated dual port switching function facilitates the implementation of linear topology structures.
3: Hardware integration bus protocol ASIC and high-speed 32-bit ARM.
4: It can be configured using software such as TwinCAT and CODESYS.
5: Multiple types of analog switch combinations.
6: Provide the required EDS files.
产品详情

1、Overview of EtherCAT Bus Module

Supports EtherCAT bus protocol and complies with IEC61158 and GB/T25105 standards.

The integrated dual port switching function facilitates the implementation of linear topology structures.

Hardware integration bus protocol ASIC and high-speed 32-bit ARM.

It can be configured using software such as TwinCAT and CODESYS.

Multiple types of analog switch combinations.

Provide the required EDS files.

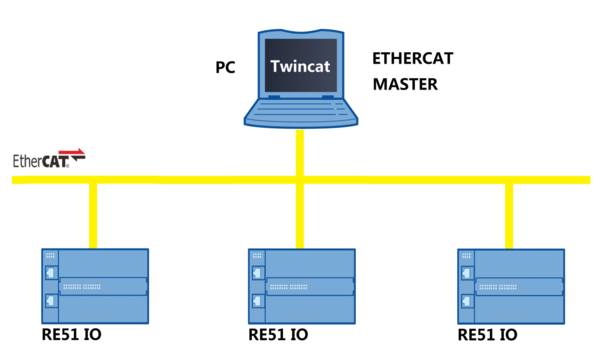

2、Typical applications



3、EtherCAT bus module model

型号

订货号

产品描述

RE51 PN 88000-P

01 02 0500

DI8×24VDC   DO8×PNP

RE51 EC 88000-P

01 02 0400

DI8×24VDC   DO8×PNP

RE51 EC 88000-R

01 02 0401

DI8×24VDC   DO8×RLY

RE51 EC HH000-P

01 02 0402

DI16×24VDC   DO16×PNP

RE51 EC HH000-R

01 02 0403

DI16×24VDC   DO16×RLY

RE51 EC X8000-P

01 02 0404

DI24×24VDC   DO8×PNP

RE51 EC X8000-R

01 02 0405

DI24×24VDC   DO8×RLY

RE51 EC D0000-D

01 02 0406

DI32×24VDC

RE51 EC 0D000-P

01 02 0407

DO30×PNP

RE51 EC H8210-P

01 02 0430

DI16×24VDC   DO8×PNP AI2×12BIT   AO1×12BIT

RE51 EC H8210-R

01 02 0431

DI16×24VDC   DO8×RLY   AI2×12BIT   AO1×12BIT

RE51 EC 88420-P

01 02 0432

DI8×24VDC   DO8×PNP AI4×12BIT   AO2×12BIT

RE51 EC 88420-R

01 02 0433

DI8×24VDC   DO8×RLY AI4×12BIT   AO2×12BIT

4、EtherCAT Bus Module View

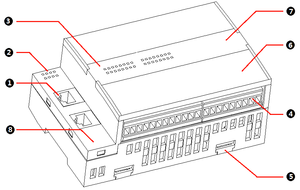

①EtherCAT bus interface        ②Power and communication indicator lights

③IO interface status indicator light         ④Power and IO interface terminals

⑤Module holder                ⑥Module flip cover

⑦Company logo and model

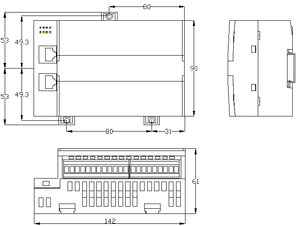

5、Product size
