1、Overview of PROFINET Bus Module
〉The module communication interface supports PROFINET bus protocol and complies with IEC61158 standard and GB/T25105 standard.
〉Supports PROFINET RT IRT function.
〉The integrated 2-pair cargo aircraft facilitates the construction of linear topology structures.
〉Hardware configuration can be done using Botu software.
〉Multiple types of analog switch combinations.
〉Standard DIN35 rail installation or screw installation.
2、Typical applications
3、PROFINET bus module model
型号 | 订货号 | 产品描述 |
RE51 PN 88000-P | 01 02 0500 | DI8×24VDC DO8×PNP |
RE51 PN 88000-R | 01 02 0501 | DI8×24VDC DO8×RLY |
RE51 PN HH000-P | 01 02 0502 | DI16×24VDC DO16×PNP |
RE51 PN HH000-R | 01 02 0503 | DI16×24VDC DO16×RLY |
RE51 PN X8000-P | 01 02 0504 | DI24×24VDC DO8×PNP |
RE51 PN X8000-R | 01 02 0505 | DI24×24VDC DO8×RLY |
RE51 PN D0000-D | 01 02 0506 | DI32×24VDC |
RE51 PN 0D000-P | 01 02 0507 | DO30×PNP |
RE51 PN H8210-P | 01 02 0530 | DI16×24VDC DO8×PNP AI2×12BIT AO1×12BIT |
RE51 PN H8210-R | 01 02 0531 | DI16×24VDC DO8×RLY AI2×12BIT AO1×12BIT |
RE51 PN 88420-P | 01 02 0532 | DI8×24VDC DO8×PNP AI4×12BIT AO2×12BIT |
RE51 PN 88420-R | 01 02 0533 | DI8×24VDC DO8×RLY AI4×12BIT AO2×12BIT |

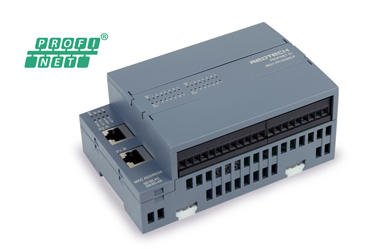

4、PROFINET Bus Module View
①PROFINET bus interface ②Power and communication indicator lights
③IO interface status indicator light ④Power and IO interface terminals
⑤Module holder ⑥Module flip cover
⑦Company logo and model ⑧MAC Address
