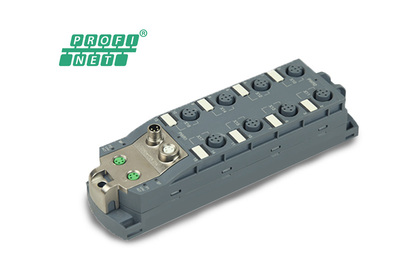

1、Product overview
〉IP67 protection level, suitable for on-site installation, sturdy structure, and easy operation.
〉The module communication interface supports PROFINET bus protocol and complies with IEC61158 standard and GB/T25105 standard.
〉Supports PROFINET RT IRT function.
〉The integrated 2-port switch facilitates the construction of linear topology structures.
〉Hardware configuration can be done using Botu software.
〉Multiple switch combination models.

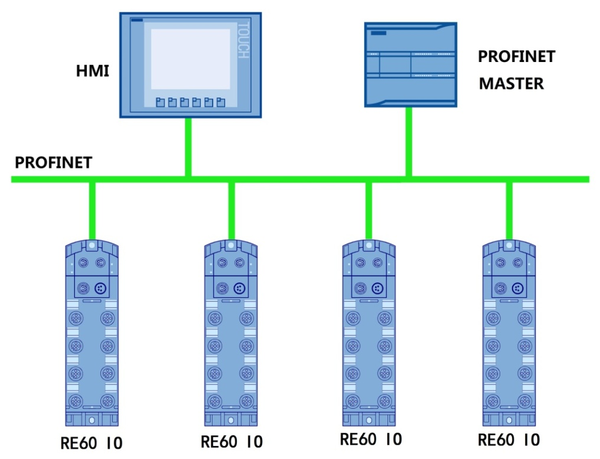

2、Typical applications
3、PRODUCT MODEL
型号 | 订货号 | 产品描述 |
RE60 PN 88000-HP | 01 06 0500 | DI8×24VDC DO8×PNP |
RE60 PN 88000-HN | 01 06 0501 | DI8×24VDC DO8×NPN |
RE60 PN 88000-LP | 01 06 0502 | DI8×24VDC DO8×PNP |
RE60 PN 88000-LN | 01 06 0503 | DI8×24VDC DO8×NPN |
RE60 PN H0000-H | 01 06 0504 | DI16×24VDC |
RE60 PN H0000-L | 01 06 0505 | DI16×24VDC |
RE60 PN 0H000-P | 01 06 0506 | DO16×PNP |
RE60 PN 0H000-N | 01 06 0507 | DO16×NPN |

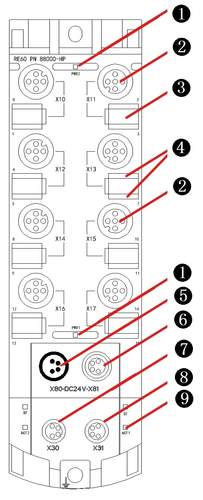

4、Explanation of each section
①Power indicator light (green) | ②IO interface (X11-X17) |
③IO interface label | ④IO status indicator light (green) |
⑤Power supply input (X80) | ⑥Power output outward (X81) |
⑦PROFINET P2 interface (X30) | ⑧PROFINET P1 interface (X31) |
⑨PROFINET communication status indicator light |
|
5、Size

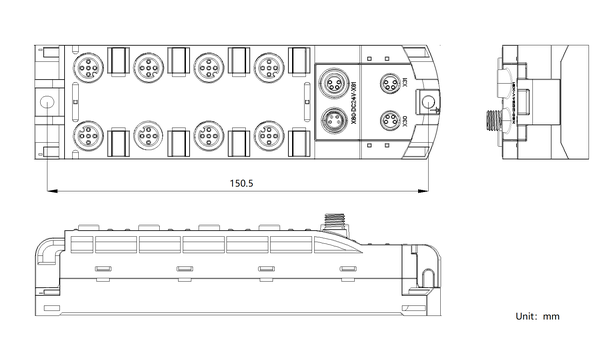

5.1External dimensions
5.1Installation size
